CAD/CAM Implant Restorations: Breakthroughs in Digital Technology Evidence-Based Digital Protocols
The integration of Computer-Aided Design and Computer-Aided Manufacturing (CAD/CAM) technology has fundamentally transformed implant prosthodontics, establishing new paradigms for precision, efficiency, and predictability. This comprehensive analysis examines advanced digital workflows, comparative software performance metrics, and evidence-based protocols essential for contemporary implant restoration practices.
Digital Revolution in Implant Prosthodontics
Paradigm Shift from Analog to Digital
The transition from conventional impression-based workflows to fully digital protocols represents more than technological advancement—it constitutes a fundamental reimagining of implant prosthodontic methodology. Contemporary CAD/CAM systems achieve dimensional accuracies within 10-50 micrometers, dramatically exceeding conventional impression materials’ inherent limitations (±100-200 micrometers).
Key technological drivers for CAD/CAM Implant Restorations include:
- Intraoral scanning accuracy improvements (mean deviation <20μm)
- Advanced CAD software with AI-enhanced design algorithms
- Precision manufacturing through 5-axis milling and additive manufacturing
- Real-time quality control through integrated measurement systems
Evidence-Based Advantages of Digital Workflows
Systematic reviews demonstrate significant clinical improvements with CAD/CAM implant restorations:
- Marginal fit accuracy: 23-67μm vs. 74-164μm for conventional methods
- Treatment time reduction: 40-60% decrease in chair time
- Material waste reduction: 65-80% less material consumption
- Patient satisfaction scores: 15-20% improvement in comfort ratings
Advanced Intraoral Scanning Protocols
Scanner Technology and Performance Characteristics
Contemporary intraoral scanners employ diverse acquisition technologies, each with specific clinical implications:
Confocal microscopy systems (3Shape TRIOS, Planmeca Emerald) provide exceptional surface detail capture with 5-15μm accuracy but require optimal moisture control and adequate access angles.
Structured light systems (iTero Element, Carestream CS 3700) offer rapid acquisition speeds (up to 3000 fps) with integrated motion compensation algorithms, ideal for challenging anatomical situations.
Active triangulation systems demonstrate superior performance in high-reflectance scenarios but may require powder application for certain implant components.
Scan Body Selection and Positioning Protocols
Scan body geometry significantly influences restoration accuracy. Clinical parameters for optimal scanning include:
Scan body height: Minimum 4mm for adequate scanner recognition Angulation tolerance: ±15° from vertical axis without accuracy degradation
Tissue clearance: 1.5-2mm minimum circumferential clearance Surface characteristics: Non-reflective coatings reduce optical artifacts
Advanced scanning techniques:
- Multi-vector scanning for complete geometry capture
- Stitching algorithm optimization for large-span restorations
- Real-time quality assessment through scanner software validation
Tissue Management for Digital Impressions
Optimal soft tissue management enhances scan accuracy and restoration emergence profiles:
Hemostatic protocols: Aluminum chloride or ferric sulfate application for 30-60 seconds Tissue displacement: Minimal retraction with #000 or #00 cord for 5-10 minutes Moisture control: Isolated field with rubber dam or cotton roll isolation Scan timing: Immediate scanning post-displacement for optimal tissue architecture capture

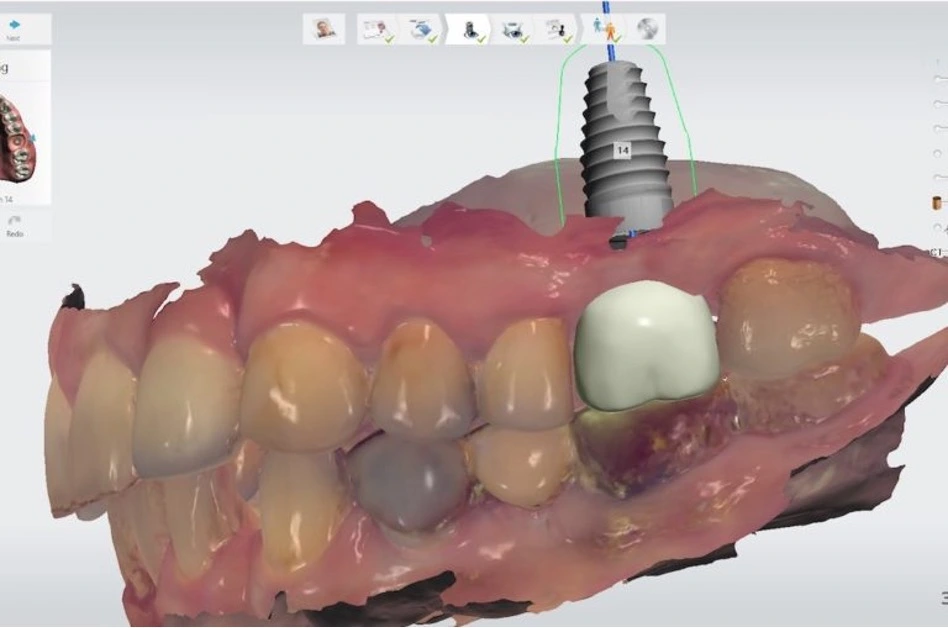

CAD Software Analysis and Performance Metrics
Comparative Software Performance in Implant Restoration Design
Contemporary CAD platforms demonstrate varying performance characteristics across critical restoration parameters:

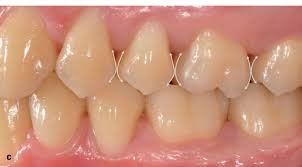

Interproximal Contact Accuracy
Exocad DentalCAD: Demonstrates superior mesial contact precision (87% optimal contacts) with advanced proximal surface algorithms 3Shape Dental Designer: Excels in distal contact relationships (89% accuracy) through machine learning-enhanced contact detection Planmeca Romexis: Balanced performance (82% overall accuracy) with integrated treatment planning capabilities

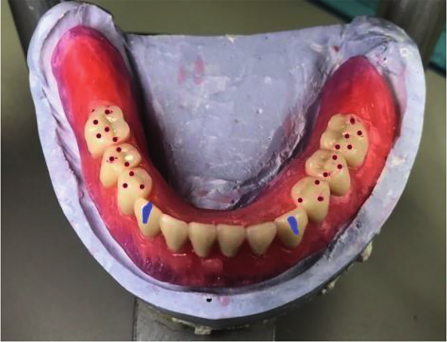

Occlusal Contact Optimization
Static occlusal contact accuracy:
- Exocad: Mean deviation 12.4μm from ideal
- 3Shape: Mean deviation 15.7μm from ideal
- Planmeca: Mean deviation 18.9μm from ideal
Dynamic occlusal performance shows less variation between platforms (8-14μm mean deviation), suggesting adequate clinical performance across systems for functional movements.
Advanced CAD Design Protocols
Abutment Design Considerations
Custom abutment advantages:
- 15-20° emergence angle optimization for tissue health
- Precise margin placement (0.5-1mm subgingivally)
- Enhanced retention form through platform switching
- Material selection optimization (titanium, zirconia, PEEK)
Critical design parameters:
- Minimum abutment height: 4-5mm for adequate retention
- Margin thickness: 0.8-1.2mm for strength requirements
- Emergence profile: 20-30° for optimal tissue response
- Anti-rotational features: Integrated hex or octagonal connections
Crown Design Algorithms
Advanced CAD software incorporates sophisticated design algorithms:
Morphology libraries: Anatomically accurate tooth forms based on demographic data Biogeneric design: Individual tooth characterization through AI analysis Occlusal scheme integration: Automated occlusal surface generation with group function or canine guidance Material compensation: Thickness optimization based on material properties
CAM Manufacturing: Precision and Material Considerations
Subtractive Manufacturing (Milling) Protocols
5-Axis Milling Advantages
Contemporary milling systems provide unprecedented precision through:
- Simultaneous 5-axis machining: Eliminates tool access limitations
- Tool path optimization: Reduces machining time by 30-40%
- Surface finish quality: Ra values <0.2μm achievable
- Geometric accuracy: ±10μm tolerance maintenance
Material-Specific Milling Parameters
Zirconia processing:
- Pre-sintered blank machining with 20-25% shrinkage compensation
- Cutting speeds: 8,000-12,000 rpm for optimal surface finish
- Final sintering: 1500-1600°C with controlled cooling rates
- Post-processing: Minimal adjustment requirements (2-5% cases)
Titanium machining:
- Flood coolant essential for heat dissipation
- Carbide tooling with TiAlN coatings for tool life
- Surface treatments: Sandblasting (50-110μm Al₂O₃) for osseointegration
- Dimensional stability: ±15μm across all surfaces
Additive Manufacturing Applications
3D Printing Technologies in Implant Prosthodontics
Stereolithography (SLA) applications:
- Surgical guides with sub-millimeter accuracy
- Temporary restoration fabrication
- Master model production for indirect workflows
- Custom impression trays for conventional integration
Direct Light Processing (DLP) advantages:
- Layer resolution to 25μm for fine detail reproduction
- Processing speed improvements (4-6x faster than SLA)
- Material variety including biocompatible resins
- Post-processing automation capabilities
Quality Control and Validation Protocols
Dimensional Accuracy Assessment
Coordinate measuring machine (CMM) validation:
- Reference standard establishment (±2μm accuracy)
- Statistical process control implementation
- Batch quality monitoring protocols
- Corrective action thresholds and procedures
Clinical validation methods:
- Fit verification through silicone impression techniques
- Marginal gap measurement using replica techniques
- Occlusal contact analysis through pressure-sensitive films
- Long-term stability monitoring through standardized photography
Process Standardization
ISO 12836 compliance for dental CAD/CAM systems ensures:
- Dimensional tolerance specifications
- Material property validation
- Software performance benchmarking
- Clinical documentation requirements
Clinical Implementation Strategies
Practice Integration Protocols
Equipment Selection Criteria
Scanner evaluation parameters:
- Accuracy specifications for intended applications
- Scan area limitations and full-arch capabilities
- Software integration with existing CAD platforms
- Service support and training availability
CAD/CAM system selection:
- In-house vs. laboratory-based workflows
- Material compatibility requirements
- Production volume capabilities
- Return on investment calculations
Staff Training and Competency Development
Structured training protocols:
- Technology fundamentals (40-hour minimum)
- Hands-on skill development with mentorship
- Quality assessment and troubleshooting
- Continuing education maintenance requirements
Workflow Optimization
Chairside vs. Laboratory Integration
Chairside advantages:
- Same-day delivery capabilities
- Immediate try-in and adjustment
- Enhanced patient satisfaction
- Inventory reduction benefits
Laboratory collaboration benefits:
- Specialized expertise access
- Complex case management
- Quality control standardization
- Cost optimization for high-volume practices
Evidence-Based Clinical Outcomes
Comparative Performance Studies
Survival Rates and Technical Complications
Systematic review analysis of CAD/CAM implant restorations demonstrates:
- 5-year survival rates: 96.4% (95% CI: 94.8-98.0%)
- Technical complication rates: 8.2% (primarily minor adjustments)
- Biological complication rates: 3.7% (comparable to conventional methods)
- Patient satisfaction scores: Mean 8.9/10 (vs. 7.8/10 conventional)
Marginal Bone Loss Parameters
CAD/CAM vs. conventional restoration comparison:
- Mean bone loss: 0.65mm vs. 0.89mm at 2 years
- Statistical significance: p<0.05 favoring CAD/CAM
- Influencing factors: Improved marginal adaptation and reduced bacterial infiltration
Long-Term Clinical Studies
Prospective cohort data (5+ years):
- Sim et al. (2019): 97.2% survival with CAD/CAM single crowns (n=156)
- Baghani et al. (2021): Superior dimensional stability in digital workflows
- Rekow (2020): Systematic advantages in precision and predictability
Advanced Applications and Emerging Technologies
Artificial Intelligence Integration
Machine Learning in Restoration Design
AI-enhanced capabilities:
- Automated anatomical landmark identification
- Predictive occlusal surface generation
- Material selection optimization algorithms
- Real-time design validation and error detection
Clinical implementation examples:
- Smile design integration with facial analysis
- Automated margin line detection and refinement
- Occlusal scheme optimization based on individual jaw movements
- Predictive maintenance for manufacturing equipment
Digital Material Innovation
Next-Generation Restoration Materials
Advanced ceramics:
- Translucent zirconia with improved esthetics (47% translucency)
- Lithium disilicate reinforced with zirconia particles
- Hybrid ceramic-polymer composites for shock absorption
- Bioactive materials with remineralization properties
Smart materials:
- Color-changing ceramics for improved esthetics
- Antimicrobial surface treatments
- Self-healing polymer matrices
- Temperature-responsive materials for comfort optimization
Quality Assurance and Risk Management
Clinical Risk Assessment
Common Failure Modes and Prevention
Technical failures:
- Marginal discrepancies (>150μm): Prevention through improved scanning protocols
- Occlusal interferences: Real-time occlusal analysis integration
- Fracture incidence: Material selection optimization and stress analysis
- Screw loosening: Torque specification compliance and maintenance protocols
Biological complications:
- Peri-implantitis risk: Optimized emergence profiles and surface treatments
- Soft tissue recession: Proper tissue management during digital impression
- Adjacent tooth damage: Careful contact adjustment protocols
- Sensory disturbances: Anatomical awareness during design phase
Documentation and Legal Considerations
Digital record maintenance:
- STL file archival with version control
- Treatment planning documentation
- Quality control measurements and photographs
- Patient consent for digital workflow participation
Future Directions and Innovation Trends
Emerging Technologies
Advanced Manufacturing Techniques
Hybrid manufacturing approaches:
- Combination subtractive-additive processes
- Multi-material printing capabilities
- In-situ quality monitoring systems
- Automated post-processing workflows
Digital Treatment Planning Integration
Comprehensive digital planning:
- Implant planning software integration
- Virtual articulator capabilities
- Facial scanning and smile design integration
- Augmented reality for treatment visualization
Research Priorities
Critical investigation areas:
- Long-term material performance studies (10+ years)
- Biological response to digital restoration surfaces
- Cost-effectiveness analyses across practice types
- Patient-reported outcome measure standardization
Clinical Decision-Making Guidelines
Case Selection Criteria
Optimal Applications for Digital Workflows
Highly recommended scenarios:
- Single-tooth implant restorations with adequate access
- Fixed partial dentures (2-4 units) with parallel implants

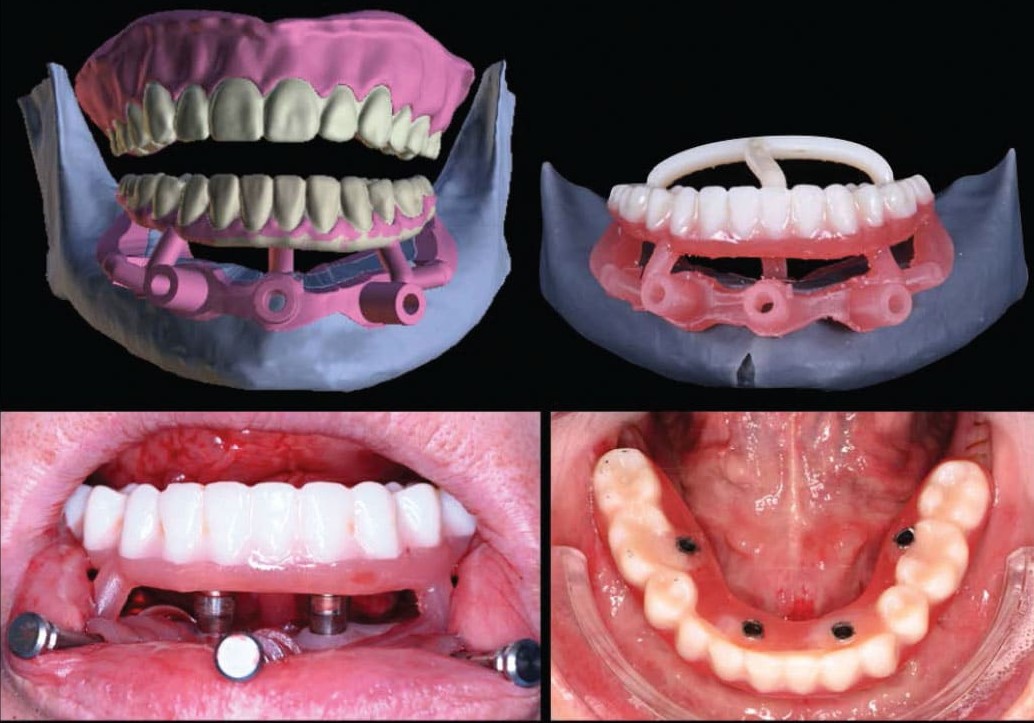

- Full-arch rehabilitations with guided surgery integration
- Esthetic zone restorations requiring precise emergence profiles
Challenging applications:
- Deep subgingival margins with limited access
- Highly angled implants (>25° from vertical)
- Patients with limited mouth opening (<35mm)
- Active periodontal disease with tissue inflammation
Cost-Benefit Analysis
Economic Considerations
Initial investment requirements:
- Intraoral scanner: $25,000-$40,000
- CAD software licensing: $5,000-$15,000 annually
- Milling equipment: $80,000-$200,000
- Training and implementation: $10,000-$25,000
Return on investment factors:
- Increased case acceptance rates (15-25% improvement)
- Reduced laboratory costs (40-60% savings)
- Enhanced efficiency and throughput
- Premium fee positioning capabilities
Conclusions: Optimizing Digital Implant Prosthodontics
CAD/CAM technology has transformed implant-supported restoration delivery, offering unprecedented precision, efficiency, and predictability. Success in digital implant prosthodontics requires comprehensive understanding of scanning protocols, software capabilities, manufacturing processes, and quality control measures.
Key Success Factors
Technical excellence requirements:
- Mastery of intraoral scanning techniques and tissue management
- Understanding of CAD software capabilities and limitations
- Knowledge of material properties and manufacturing constraints
- Implementation of robust quality control protocols
Clinical integration strategies:
- Systematic workflow development and staff training
- Evidence-based case selection criteria
- Continuous technology evaluation and upgrade planning
- Long-term outcome monitoring and documentation
Evidence-Based Recommendations
For optimal clinical outcomes:
- Implement comprehensive scanning protocols with appropriate scan body selection
- Select CAD software based on specific restoration requirements and accuracy needs
- Establish quality control measures throughout the digital workflow
- Maintain current knowledge through continuing education and literature review
- Document outcomes systematically for practice improvement and risk management
The future of implant prosthodontics lies in the continued integration of digital technologies, artificial intelligence, and advanced materials. Practitioners committed to excellence in digital dentistry must embrace evidence-based protocols while remaining adaptable to technological advancement and innovation.
Contemporary practice demands not only technical proficiency but also understanding of the scientific foundation underlying digital workflows. Through systematic implementation of evidence-based protocols and continuous professional development, dental professionals can optimize patient outcomes while enhancing practice efficiency and profitability.
