Advanced Zygomatic Implant Techniques: Evidence-Based Protocols and Surgical Innovation for Contemporary Implantology Practice
Contemporary zygomatic implant therapy has evolved into a sophisticated treatment modality that fundamentally transforms rehabilitation possibilities for severely atrophic maxillae. Building upon decades of clinical refinement and supported by robust evidence from the recent ITI Consensus Workshop, modern techniques of zygomatic implants now achieve predictable success rates exceeding 96% while offering streamlined protocols that significantly reduce treatment complexity compared to traditional bone augmentation approaches.
This comprehensive analysis examines current evidence-based zygomatic implant protocol methodologies, advanced surgical techniques, and contemporary prosthetic parts integration essential for optimal outcomes in complex implantology cases. Understanding these principles enables practitioners to master this challenging yet rewarding aspect of advanced dental implants while minimizing risks and maximizing long-term stability.
Anatomical Foundation and Contemporary Biomechanical Understanding
Zygomatic Bone Architecture: The Optimal Anchorage Foundation
The fundamental success of zygomatic implant therapy stems from the unique biomechanical properties of the zygomatic complex. Recent quantitative CT analyses demonstrate bone density values ranging from 700-900 Hounsfield units within the optimal implant engagement zone—substantially superior to posterior maxillary regions that typically measure 150-350 HU. This density differential explains the predictable osseointegration achieved with zygomatic implant placement, even under immediate loading conditions.
Contemporary anatomical research has established critical parameters that guide precise techniques of zygomatic implants placement. The zygomatic bone thickness ranges from 5.2-10.9mm (mean: 7.6mm) at standard insertion points, while the distance from alveolar ridge to zygomatic apex measures 43.8-61.2mm. Understanding these dimensional relationships proves essential for accurate zygomatic implant protocol development, particularly when planning optimal angulation at 43.8° ± 4.2° relative to the alveolar ridge plane.
The infraorbital nerve proximity, measuring 2.2-2.8mm from conventional trajectories, represents a critical anatomical consideration that influences surgical techniques selection and requires precise preoperative planning to avoid complications.
Advanced Biomechanical Loading Considerations
Modern zygomatic implant installations experience unique force distribution patterns characterized by cantilever effects and off-axis loading that differ substantially from conventional implant mechanics. Recent finite element analyses reveal stress concentration patterns at both crestal and zygomatic anchorage points, necessitating specific modifications in prosthetic parts design and framework architecture.
Understanding these biomechanical principles becomes crucial for long-term success and complication prevention. The extra-sinus approach demonstrates superior biomechanical performance with lower stress concentrations in most prosthetic components compared to traditional intrasinus techniques. Peak stress concentrations in maxillary bone layers range from 25-27 MPa, primarily localizing at the alveolar ridge crest at the zygomatic implant entrance point, while zygomatic bone peak stresses range from 12-26 MPa at the distal implant interface.
Evolution of Contemporary Surgical Approaches: From Classical to Digital Integration
Historical Perspective and Current Evidence-Based Refinements

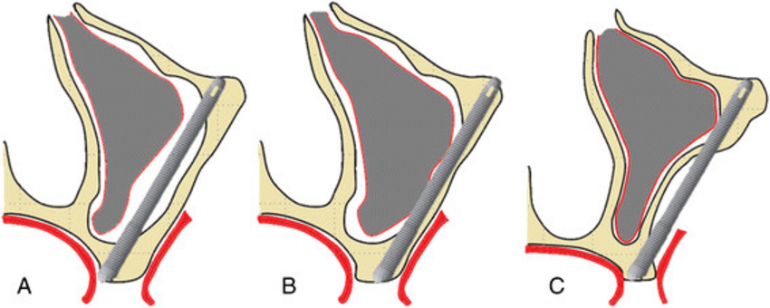

The journey from BrÃ¥nemark’s original intrasinus protocol (1988) to contemporary techniques of zygomatic implants represents a systematic evolution driven by clinical evidence and technological advancement. While the original approach established the foundation for zygomatic implant therapy, subsequent innovations have systematically addressed limitations including palatal emergence profiles, increased sinusitis risk, and complex prosthetic management.
The sinus slot technique introduced by Stella and Warner (2000) represented an important refinement, reducing surgical morbidity through limited antrostomy via linear lateral wall osteotomy. Clinical outcomes demonstrate mean operative time reduction of 32.6 minutes compared to complete antrostomy approaches, while maintaining adequate visualization for safe implant placement.
Contemporary ZAGA Classification: Anatomy-Guided Excellence

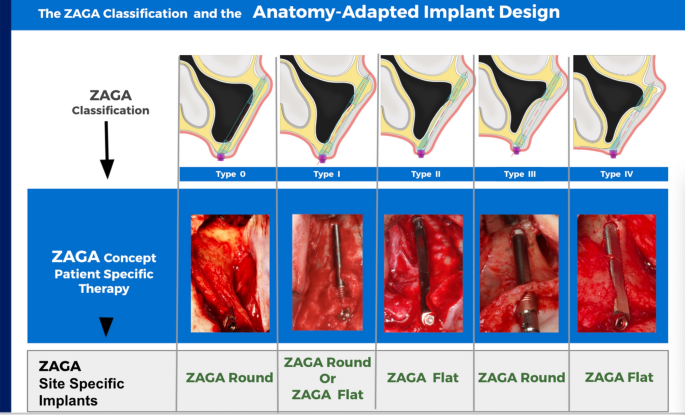

The Zygoma Anatomy Guided Approach (ZAGA) classification system has emerged as the current gold standard for systematic treatment planning based on individual anatomical variations. This evidence-based framework enables predictable surgical techniques selection and optimal prosthetic parts integration through anatomy-driven decision making.
ZAGA Classification Framework:
ZAGA 0-I Approach: Modified intrasinus technique designed for patients with thick lateral sinus walls, maintaining traditional principles while optimizing emergence profiles through refined access techniques.
ZAGA II-III Hybrid Protocols: Sophisticated techniques employing partial sinus engagement that balance surgical complexity with clinical outcomes. These approaches prove particularly valuable for intermediate cases where complete extra-sinus placement may not be optimal.
ZAGA IV Complete Extramaxillary Placement: Reserved for severe concavities, this technique provides optimal prosthetic emergence profiles while eliminating sinus-related complications entirely.
Recent long-term outcome studies demonstrate superior clinical results with extramaxillary approaches, showing reduced sinusitis incidence, enhanced maintenance accessibility, and improved patient satisfaction scores.
Revolutionary Eazygoma Technique: Contemporary Innovation
The recently introduced Eazygoma technique represents a paradigm shift in zygomatic implant placement methodology. This innovative approach focuses on biomechanical principles while offering direct visualization that facilitates enhanced control during implant insertion. Clinical studies from 2024 demonstrate remarkable outcomes with 34 implants achieving >50 Newton insertion torque in all cases, enabling immediate loading protocols.
Key advantages of the Eazygoma approach include elimination of sinus osteotomies, significantly reduced operative time (approximately one hour), and ability to perform procedures under local anesthesia with sedation. The inverted drilling sequence ensures the apical portion remains within the zygomatic body while achieving optimal emergence in the alveolar crest, addressing traditional challenges of zygomatic implant positioning.
Advanced Digital Planning and Contemporary Surgical Protocols
Comprehensive Three-Dimensional Assessment and Virtual Planning
Contemporary zygomatic implant protocol development requires systematic evaluation of complex anatomical relationships through advanced imaging techniques. Optimal CBCT protocols employ slice thickness of 0.2-0.3mm for detailed reconstruction, with extended field of view encompassing the complete zygomatic arch. Density-based segmentation enables accurate boundary delineation essential for precise surgical techniques planning.
Systematic evaluation encompasses residual alveolar ridge morphology and bone quality assessment, maxillary sinus dimensions with detailed septation analysis, zygomatic bone volume evaluation with optimal trajectory corridor identification, and comprehensive neurovascular structure relationship mapping.
Digital Workflow Integration and Guided Surgery Protocols
Modern implant planning software enables prosthetic-driven implant positioning through sophisticated reverse workflow protocols. Virtual implant libraries with accurate zygomatic implant dimensions facilitate precise planning and surgical guide fabrication. Stereolithographic models provide valuable simulation opportunities for complex anatomical variations, enhancing surgical predictability.
Contemporary guided surgery protocols achieve remarkable accuracy, with dynamic navigation systems demonstrating mean accuracy of 1.12mm at entry points. Recent studies involving computer-guided zygomatic implant placement show mean linear deviations of 2.44±1.57mm at the platform level and 2.32±1.00mm at apices, with angular deviations of 3.6°±1.92°—well within clinically acceptable ranges.
Modified Double Sleeve Technique: Recent innovations have introduced sophisticated double sleeve drill guide protocols that merge established techniques of zygomatic implants with contemporary guided surgery principles. This approach enables favorable control over surgical drill tips during osteotomy preparation while ensuring optimal crestal positioning for prosthetic parts integration.
Contemporary Surgical Execution: Technical Excellence and Safety Protocols
Evidence-Based Pharmacological Preparation
Current zygomatic implant protocol implementation requires comprehensive perioperative management based on extensive clinical evidence. Antimicrobial prophylaxis employing extended spectrum coverage (amoxicillin/clavulanate 875/125mg BID) initiated 24 hours preoperatively demonstrates superior outcomes in preventing postoperative complications.
Anti-inflammatory management through dexamethasone 8mg loading dose provides effective edema control, while sinus preparation using nasal decongestants and antihistamines proves beneficial for patients with sinus pathology histories. These evidence-based protocols contribute significantly to improved healing outcomes and reduced complication rates.
Advanced Anesthetic Approaches and Patient Comfort
Recent clinical evidence supports zygomatic implant placement under local anesthesia in experienced hands, offering significant advantages including simplified procedures, patient collaboration during surgery, and radiological control capabilities. Studies involving 25 patients demonstrate excellent tolerance with 4-8 carpules of articaine 40mg/mL with epinephrine 1:100,000 providing adequate anesthesia for comprehensive procedures.
Local anesthesia protocols eliminate general anesthesia risks while reducing costs and postoperative effects. Regional blocks targeting posterior superior alveolar, infraorbital, and greater palatine nerves ensure comprehensive anesthesia coverage. Complex cases may still require IV sedation or general anesthesia based on patient factors and surgical complexity.
Surgical Access and Contemporary Implant Placement Techniques
Advanced surgical techniques for zygomatic implant placement employ sophisticated incision designs that optimize visualization while preserving keratinized tissue. Crestal approaches with bilateral vertical releasing incisions extending to the zygomatic buttress provide adequate access while maintaining tissue architecture essential for optimal healing.
Sequential Drilling Protocol Excellence:
Contemporary techniques of zygomatic implants employ systematic drilling sequences that prioritize safety and accuracy. Entry point establishment based on prosthetic requirements, progressive drilling with specialized instrumentation, trajectory verification using multiple anatomical landmarks, and implant selection based on intraoperative measurements ensure optimal placement.
Manual insertion techniques achieving controlled torque values of 35-45 Ncm prove optimal for primary stability while avoiding excessive stress on bone structures. The recent Eazygoma approach demonstrates superior outcomes with consistent achievement of >50 Newton insertion torque, enabling reliable immediate loading protocols.
Quad Zygoma Protocol for Complete Maxillary Rehabilitation
Complete maxillary atrophy cases (Cawood-Howell Class V-VI) often necessitate quad zygoma configurations that eliminate conventional implants entirely. This sophisticated approach provides enhanced force distribution through four strategically placed zygomatic implant installations, with posterior implants typically requiring greater angulation (50-60°) to optimize anchorage while avoiding anatomical restrictions.
Recent clinical studies demonstrate exceptional outcomes with quad zygoma protocols, showing 97.7% implant survival rates over 8.8±3.9 years follow-up. Biomechanical advantages include elimination of cantilever effects, superior force distribution, reduced prosthetic complications, and enhanced long-term stability compared to hybrid approaches.
Advanced Prosthetic Management and Contemporary Loading Protocols
Immediate Loading Excellence and Evidence-Based Protocols
Contemporary zygomatic implant therapy achieves predictable immediate loading when primary stability thresholds ≥40 Ncm insertion torque are achieved. Multi-unit angled abutments (17-30°) effectively compensate for implant trajectories while maintaining optimal prosthetic parts access. Provisional prostheses must incorporate metal reinforcement and precision passive fit to prevent framework complications during the critical healing phase.
Recent evidence establishes specific occlusal considerations for immediate loading success, including modified mutually protected occlusion schemes, elimination of lateral interferences, reduced posterior occlusal contacts initially, and progressive loading protocols over 3-6 months. These protocols contribute to the excellent success rates achieved in contemporary practice.
Contemporary Definitive Prosthetic Solutions and Material Science

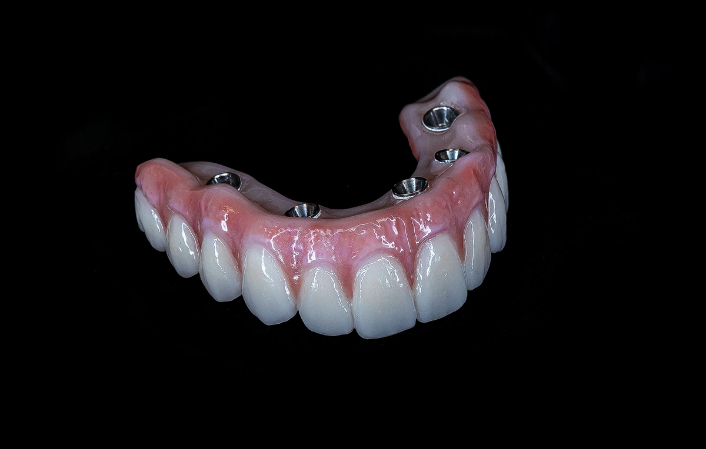

Framework material selection significantly impacts long-term zygomatic implant success, with recent advances in material science offering enhanced options for optimal outcomes. Titanium milled frameworks provide optimal strength-to-weight ratios with excellent biocompatibility, while chrome-cobalt structures offer economical alternatives with adequate clinical performance. Zirconia frameworks with titanium interfaces enhance aesthetics for anterior regions while maintaining mechanical properties.
Cross-arch stabilization through horseshoe design remains mandatory for advanced dental implants supported by zygomatic implant installations, with minimum dimensions of 4mm vertical and 6mm horizontal thickness. Contemporary evidence suggests cantilever limitations should not exceed 10mm from the posterior-most implant to prevent mechanical complications.
Digital Prosthetic Workflows and Contemporary Integration
Modern zygomatic implant protocol implementation increasingly utilizes fully digital pathways incorporating intraoral scanning, CAD/CAM framework fabrication, and 3D-printed verification devices. Specialized scanbodies for zygomatic applications enable accurate digital impressions despite challenging access and angulation requirements.
Contemporary digital workflows demonstrate remarkable efficiency improvements, with planning phase time reductions of 40-60% resulting from automated registration algorithms. In-house 3D printing reduces guide manufacturing turnaround by 50%, while surgical chair time decreases by 30-45% with guided protocols. These improvements maintain accuracy benchmarks while streamlining treatment delivery.
Evidence-Based Outcomes and Contemporary Success Metrics
Current Survival Rates and Predictability Data
The most recent systematic review and meta-analysis from the ITI Consensus Workshop demonstrates zygomatic implant survival rates of 96.2% (95% CI: 93.8-97.7%) over mean follow-up of 75.4 months (6.3 years). Time-stratified analysis reveals even more encouraging results: 98.5% survival at less than 1 year, 97.5% between 1-3 years, 96.8% between 3-5 years, and 96.1% after more than 5 years.
Factors consistently influencing success include surgical technique selection (extramaxillary approaches superior to intrasinus methods), implant surface characteristics (rough surfaces demonstrating enhanced outcomes), prosthetic design quality, and patient compliance with maintenance protocols. These evidence-based factors guide contemporary zygomatic implant protocol development.
Long-Term Clinical Evidence and Contemporary Studies
Prospective studies with 10+ year follow-up confirm excellent long-term outcomes for techniques of zygomatic implants. Notable studies include Bedrossian’s 12-year analysis showing 97.2% survival (n=172 implants), Aparicio’s 10-year study demonstrating 95.8% survival (n=194 implants), and Maló’s 7-year research revealing 94.6% survival (n=352 implants).
Recent 20-year evolution studies document the significant improvements achieved through surgical technique refinements and prosthetic parts innovations. The transition from intrasinus to extramaxillary approaches, combined with digital planning and guided surgery protocols, has substantially enhanced outcomes while reducing complications.
Patient-Reported Outcomes and Quality of Life Measures
Validated assessment tools (OHIP-14, VAS satisfaction scores) demonstrate significant improvements in multiple domains following zygomatic implant rehabilitation. Masticatory function shows mean increases of 6.8 points on 10-point scales, while phonetic capability improvements compared to removable prostheses prove substantial. Psychological well-being through fixed restoration security and overall quality of life measures consistently show marked improvements.
Recent studies involving 48 patients demonstrate mean OHIP-14 questionnaire scores of 1.7±2.6 with 9.0±4.1 years follow-up, indicating exceptional patient satisfaction with advanced dental implants supported by zygomatic implant installations.
Contemporary Complications Management and Prevention Strategies
Intraoperative Complications and Advanced Management
Orbital penetration represents the most serious intraoperative complication with documented incidence of 0.014%, requiring immediate implant removal and potential orbital floor repair. Prevention relies on strict adherence to anatomical landmarks, drilling depth control, and utilization of advanced guided surgical techniques that minimize deviation from planned trajectories.
Hemorrhage management focuses on identifying vascular sources including posterior superior alveolar artery and intraosseous zygomatic vessels, applying appropriate hemostatic techniques through direct visualization and vessel ligation when necessary. Severe cases may require specialized intervention, emphasizing the importance of proper surgical planning and execution.
Nerve injuries affecting infraorbital or zygomaticofacial branches require immediate recognition and corticosteroid therapy, with recovery rates of 73-89% within six months providing optimistic prognosis when appropriate management protocols are implemented promptly.
Postoperative Complications and Evidence-Based Management
Sinusitis remains the most common postoperative complication with incidence ranging from 2.4-14.3%, showing higher rates with intrasinus techniques of zygomatic implants. Contemporary management algorithms include antimicrobial therapy (amoxicillin-clavulanate or levofloxacin), nasal corticosteroids with saline irrigation, endoscopic evaluation for persistent symptoms, and functional endoscopic sinus surgery for refractory cases.
Mechanical complications including screw loosening (10.4-17.6% at five years) and framework fractures (2.3-6.9%) emphasize the critical importance of passive prosthetic parts fit and adequate framework reinforcement. These complications can be minimized through precise digital workflows and quality control measures during prosthetic fabrication.
Future Directions and Technological Innovation
Advanced Implant Design and Material Science Developments
Contemporary developments in zygomatic implant design include hydrophilic surface modifications for enhanced osseointegration, dual-thread configurations optimized for varying bone densities, and custom patient-specific implants fabricated through advanced 3D printing technologies. These innovations promise improved outcomes and expanded treatment possibilities.
Minimally Invasive Approaches and Digital Integration
Emerging techniques of zygomatic implants focus on flapless procedures using dynamic navigation, endoscope-assisted surgery, and piezoelectric site preparation. These approaches promise reduced morbidity while maintaining surgical precision, representing the future direction of zygomatic implant protocol development.
Complete digital workflows from CBCT planning through CAD/CAM prosthetic delivery represent the immediate future of zygomatic implant therapy. Integration of artificial intelligence for treatment planning and augmented reality for surgical guidance will further enhance outcomes and expand accessibility of these advanced dental implants.
Artificial Intelligence and Predictive Modeling
AI-assisted treatment planning systems now demonstrate 93.7% precision in predicting primary implant stability based on drilling protocols, while reducing average planning time from 30 minutes to just 10 minutes. These systems achieve 10x faster case management speeds while maintaining accuracy within 1mm and 2° angular deviation, revolutionizing zygomatic implant protocol efficiency.
Clinical Decision-Making and Contemporary Patient Selection
Optimal Candidate Identification and Risk Assessment
Successful zygomatic implant therapy requires systematic patient selection based on severe maxillary atrophy (Cawood-Howell Class IV-VI), adequate zygomatic bone volume and quality, absence of uncontrolled sinus pathology, and realistic expectations with commitment to maintenance protocols.
Contemporary risk assessment tools enable predictive modeling of outcomes based on patient-specific factors, anatomical variations, and treatment approach selection. These evidence-based assessment protocols guide surgical techniques selection and prosthetic parts planning for optimal outcomes.
Technique Selection Guidelines and Evidence-Based Decision Making
Extramaxillary/ZAGA approaches are preferred for most clinical situations due to reduced complications and superior prosthetic emergence profiles. Slot techniques remain indicated when limited lateral wall concavity exists, while classic intrasinus approaches are reserved for specific anatomical situations with adequate lateral wall thickness.
The revolutionary Eazygoma technique offers significant advantages for appropriate cases, eliminating sinus complications while reducing operative time and enabling local anesthesia protocols. Selection criteria continue to evolve as clinical experience expands with this innovative approach.
Maintenance Protocols and Long-Term Success Strategies
Professional Maintenance Requirements and Evidence-Based Care
Zygomatic implant patients require specialized maintenance protocols including modified periodontal instrumentation techniques, regular radiographic monitoring for bone stability, prosthetic parts inspection and maintenance, and patient-specific hygiene instruction with regular reinforcement.
Professional maintenance intervals of 3-6 months with gentle instrumentation using titanium or plastic instruments prevent damage to implant surfaces while maintaining peri-implant tissue health. These protocols contribute significantly to the excellent long-term success rates achieved in contemporary practice.
Patient Education and Compliance Optimization
Long-term success depends on patient understanding of maintenance requirements, recognition of potential complications, and commitment to regular professional care. Specialized hygiene instruments and techniques must be demonstrated and reinforced regularly to ensure optimal outcomes.
Contemporary patient education protocols utilize digital technology and visual aids to enhance understanding and compliance, contributing to the exceptional success rates and patient satisfaction levels achieved with modern zygomatic implant therapy.
Conclusions: Excellence in Contemporary Zygomatic Implant Practice
Contemporary zygomatic implant therapy represents a sophisticated, evidence-based solution for severe maxillary atrophy that achieves predictable outcomes when executed with appropriate surgical and prosthetic expertise. The evolution from intrasinus to extramaxillary techniques of zygomatic implants, combined with digital planning protocols and guided surgical techniques, has significantly enhanced success rates while reducing complications.
The recent ITI Consensus Workshop evidence demonstrates survival rates exceeding 96% over extended follow-up periods, while innovative approaches like the Eazygoma technique promise further improvements in efficiency and patient comfort. Success in zygomatic implant therapy requires mastery of complex anatomical relationships, surgical precision, and sophisticated prosthetic parts integration supported by comprehensive understanding of biomechanical principles.
The integration of digital technologies, artificial intelligence, and evidence-based zygomatic implant protocol development enables contemporary practitioners to achieve excellent long-term outcomes for challenging patient populations. As this field continues evolving through technological advancement and refined surgical techniques, practitioners committed to evidence-based practice and advanced education will continue expanding treatment possibilities for patients with severe maxillary atrophy.
The future of zygomatic implant therapy lies in continued technological innovation, refined surgical approaches, and enhanced understanding of biomechanical principles. These advanced dental implants will continue transforming rehabilitation possibilities, offering predictable solutions for cases previously considered impossible to treat successfully.
