Digital trifunctional intraoral appliance for centric relation recording

What does combining three recording functions actually add to a centric relation appointment? A digital trifunctional appliance is an interesting way to organize the procedure. Its value should be considered separately from claims about a more accurate jaw relationship, better restorations or lower treatment costs.

DDS examines the technique here to help the dentist and technician distinguish a useful design concept from the clinical evidence needed to adopt it.

What did Huang and colleagues describe?

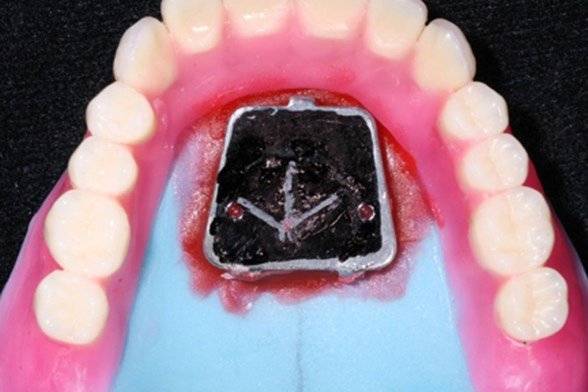

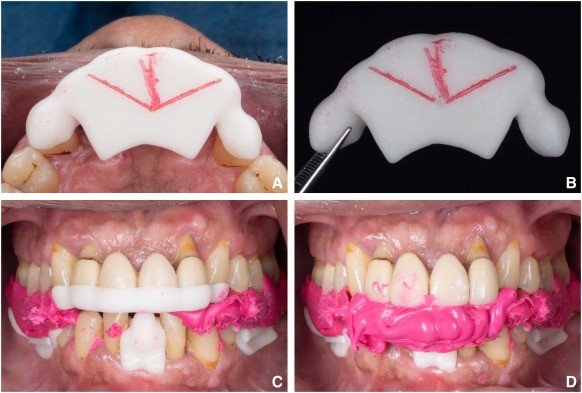

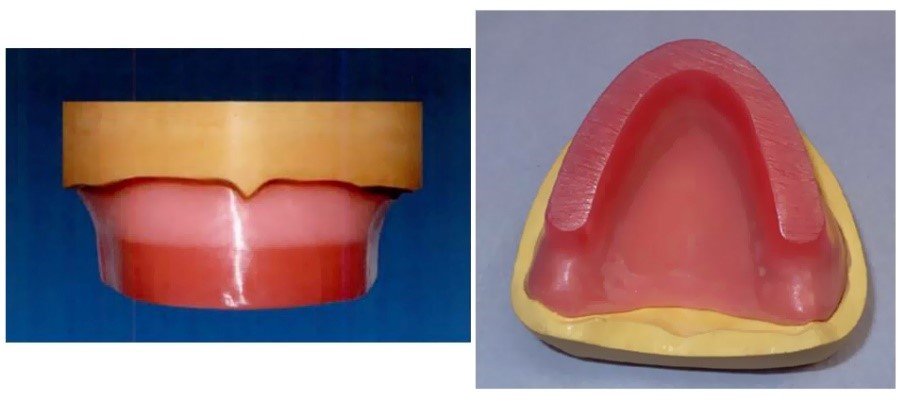

Huang and colleagues’ dental technique report combines an anterior deprogrammer, a gothic arch tracer and a record base with occlusal rims. Their representative patient was partially edentulous. The report describes a clinical–laboratory method; it is not a comparative effectiveness trial.

1. Acquire the starting records. The published sequence starts with maxillary and mandibular scans and an alignment scan in maximum intercuspation (MIP), using TRIOS 3.
2. Organize the digital design. An occlusal-device order is created in DentalDB 3.2. The three recording functions are incorporated into the appliance design.
3. Separate the proposal from its validation. The authors describe convenience and efficiency advantages, but explicitly identify recorded CR accuracy as a question for further research. Proposed facial-scanner or jaw-tracking integrations are future developments.

For software orientation, exocad’s DentalDB documentation describes the module as the place to define a job and launch scanning and CAD construction. A saved order or completed design is not a clinical measurement. This overview does not supply an independently verified manufacturing recipe, resin specification or post-curing schedule; these must come from the complete technique and the applicable material and equipment instructions.

Does digital recording remove variability?

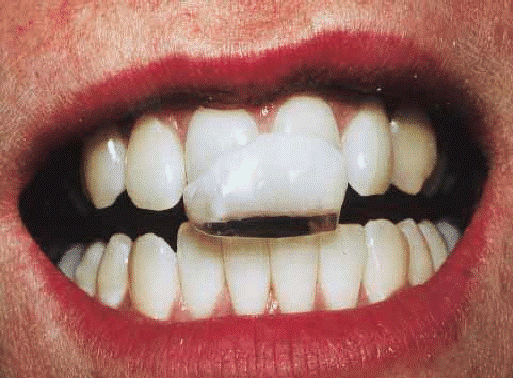

A separate clinical investigation by Revilla-León and colleagues compared four intraoral scanners and an optical jaw-tracking system with a conventional mounted-cast reference. It used one completely dentate volunteer and a Kois deprogrammer, with ten specimens per group. The recorded maxillomandibular relationship’s trueness and precision varied with the digital technique.

That experiment is useful context for questioning a universal accuracy promise. It did not test the trifunctional appliance, establish the condyles’ true anatomical position, or demonstrate restoration longevity, comfort or financial savings. Its measurements were discrepancies relative to its conventional reference. Repeated records from one volunteer are not ten independent patients, and findings from that dentition cannot simply be extended to mobile teeth or partially edentulous arches.

In practical terms, keep three questions distinct: how consistently the patient’s jaw relationship is recorded, how it is transferred into the digital model, and how the eventual restoration performs. A successful result at one stage is not evidence for every subsequent stage.

How should a team evaluate the proposal?

The following are DDS educational considerations, rather than results reported for this appliance:

• Patient selection: start with the clinician’s reason for obtaining a CR record and the patient’s dental and functional assessment. A patient-specific design does not establish suitability for every patient or make tooth mobility irrelevant.

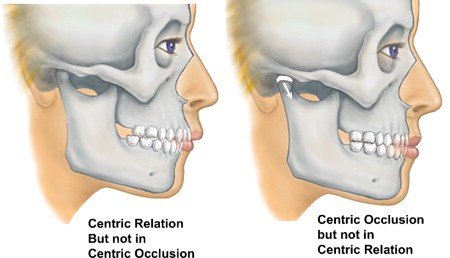

• Clinical and laboratory communication: distinguish the initial MIP alignment from the intended CR record. Ask which record the laboratory received and which jaw relationship was used for mounting; do not relabel an initial scan as an independently validated CR position.
• Manufacture and delivery: clarify the exact design, material and fabrication instructions before use. Digital customization alone does not establish biocompatibility, durability, passive seating or freedom from adjustment.
• Efficiency and patient experience: if evaluating the workflow locally, record design, manufacture, adjustment and chairside time separately, together with remakes and patient feedback. Combining functions in one appliance does not by itself quantify shorter appointments or greater comfort.
• Costs: compare the complete local workflow, including equipment, software, materials, staff time and repeat work. An appliance concept cannot supply a practice-specific saving or predict referrals.

These questions preserve the technique’s practical interest without turning feasibility into an outcome guarantee. They also avoid assuming that a newly combined device is automatically superior to a familiar conventional method.

What should the dentist and technician take away?

For the dentist: evaluate the recording method for the patient and document the jaw relationship actually obtained. Do not promise superior accuracy, comfort or restorative success on the strength of this technique description.

For the laboratory: identify the supplied relationship record and the exact fabrication instructions. Resolve missing design or material information before treating this overview as a production protocol.

The useful next question is whether the combined workflow performs well under measured clinical conditions. The article supports examining that question; it does not settle it.
