Guided implant surgery: accuracy, planning and clinical limitations

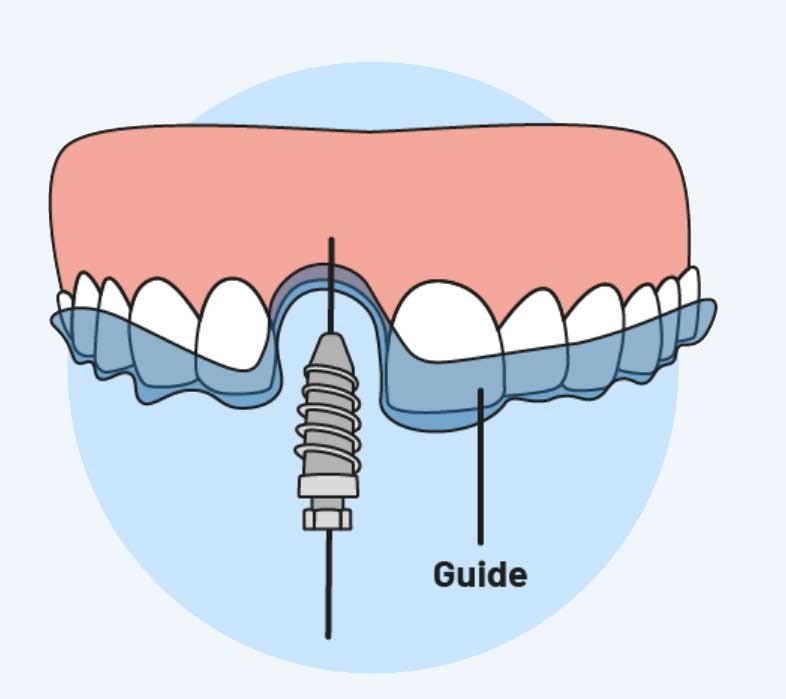

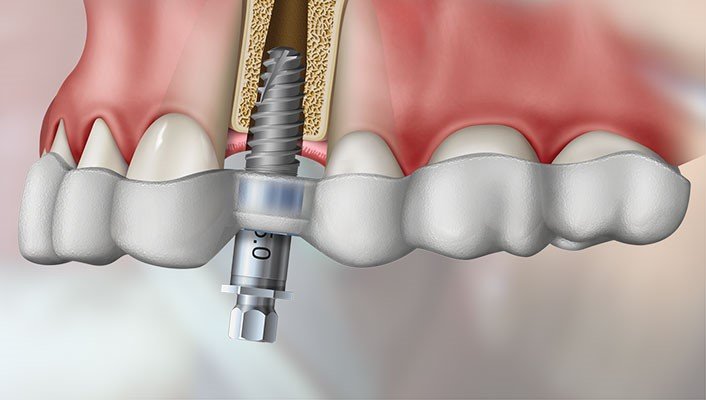

Guided implant surgery helps clinicians transfer a prosthetically driven digital plan to the surgical site. Static templates, dynamic navigation and robot-assisted systems offer different ways to support implant positioning. Their benefits depend on the indication, imaging and registration quality, equipment, and the treating team’s experience. Placement accuracy, implant survival and patient-reported outcomes are distinct measures; improvement in one does not establish improvement in all of them.

What accuracy studies show

A 2024 systematic review by Khaohoen and colleagues reported pooled mean deviations of 1.11 mm at the entry point, 1.40 mm at the apex and 3.51° angularly across computer-assisted approaches. Its robotic subgroup had lower mean deviations of 0.81 mm, 0.77 mm and 1.71°, respectively, but contained only two studies and 44 implants. These are study-level averages, not maximum errors or guaranteed results for an individual procedure. The authors cautioned against firm comparative conclusions because of heterogeneous systems and study designs and limited robotic evidence.

Implant failure is a separate outcome. In Abdelhay and colleagues’ 2021 systematic review, the reported failure incidence was 2.25% for fully guided placement versus 6.42% for freehand placement. Those figures describe the included studies, which differed in quality, follow-up and clinical methods. The comparison concerned fully guided templates, not every dynamic or robotic system. It supports a potential benefit in the studied populations, but does not establish a universal failure rate or a guaranteed reduction for every patient. Implant survival also does not mean freedom from biological or prosthetic complications.

Dynamic navigation provides real-time feedback and allows intraoperative adjustment without a static drilling template. A 2021 systematic review by Schnutenhaus and colleagues found clinical accuracy broadly comparable with static navigation, while noting heterogeneous systems and limited clinical data. Workflow flexibility should therefore be considered alongside calibration, tracking reliability, access and operator training, rather than treated as proof that one approach is best for every case.

AI supports digital planning, with clinician verification

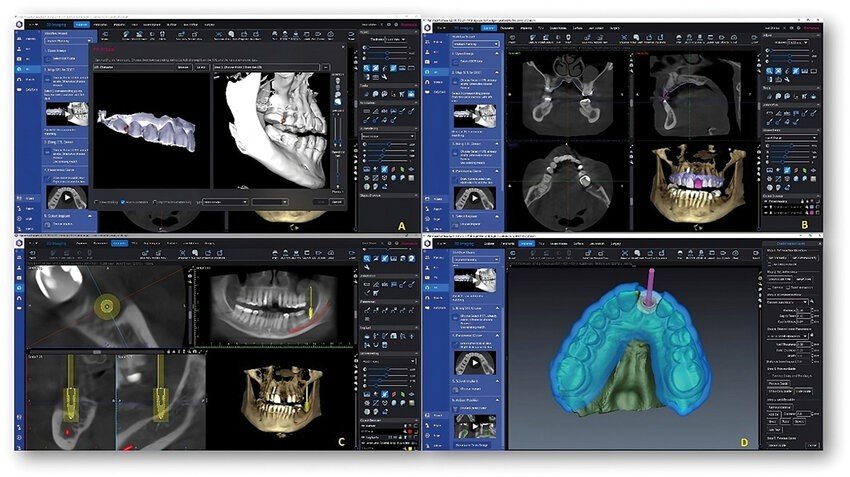

AI can assist with anatomical segmentation, image registration and selected design tasks. In Elgarba and colleagues’ 2024 scoping review, 47 eligible studies included 39 on anatomical landmark segmentation and eight on virtual implant placement. The review assessed evidence and available software through November 2023; none of the 12 assessed software applications then provided a fully automated implant-planning protocol. This is a dated evidence snapshot, not a claim about every product available today. The authors also identified a shortage of scientific and clinical validation.

Available features illustrate the distinction between assistance and treatment decisions. 3Shape describes AI-assisted guide design based on the planned implant position, while Planmeca describes automated segmentation of structures such as teeth, jaws, nerves, airways and sinuses. These manufacturer descriptions establish advertised functionality; they do not establish comparative patient outcomes or a universal time-saving percentage.

A segmentation score or correct implant-system identification is not the same as a clinically acceptable implant plan. Clinicians must check the relevant anatomy and the alignment of scan datasets, review the restorative position, and correct unsuitable software proposals. The treatment plan remains a clinical decision.

Minimally invasive approaches require case selection

Guided surgery can be performed with either a flapless or an open-flap approach. The ITI’s 2018 consensus on patient outcomes found that flapless static guidance may reduce postoperative pain in fully edentulous cases compared with open-flap procedures. It did not establish a general advantage for all guided procedures in pain, economics or intraoperative complications. It also emphasized assessing keratinized mucosa before a flapless plan.

A 2024 randomized trial by Kim and colleagues compared fully guided flapless surgery with partially guided open-flap surgery during crestal sinus floor elevation at single-tooth posterior maxillary sites. Of 56 enrolled patients, 55 contributed to accuracy and time analyses and 51 to patient-reported outcomes. Several accuracy, time and satisfaction measures favored the fully guided approach. However, four implants failed to osseointegrate by 12 weeks, three in the fully guided group and one in the partially guided group. This small, short-term trial concerns a combined protocol; it does not isolate guidance from flap design or establish superior implant survival.

Prosthetic planning and immediate restoration

The proposed restoration should inform implant position before surgery. Digital planning may support preparation of a provisional restoration, but having a prefabricated prosthesis does not establish that an implant can be loaded immediately. Implant placement timing and loading timing are separate decisions, and abutment or restorative material selection must fit the specific implant system and clinical indication.

Immediate loading can be predictable in appropriately selected cases. The ITI’s 2013 guidance for single implant crowns and guidance for fixed full-arch prostheses address different clinical situations. Both emphasize primary stability and case selection. Insertion torque and implant stability quotient (ISQ) are useful assessment measures, but a single pair of thresholds does not guarantee osseointegration or a specified success rate across indications. Loading decisions also require assessment of bone and soft tissues, augmentation needs, the prosthetic plan, occlusal loading and patient risk factors.

For immediate placement and immediate restoration/loading of a single tooth in the anterior maxilla, the ITI’s 2023 Type 1A consensus reports high survival in highly selected populations. It classifies the procedure as complex and calls for experienced clinicians. Its practical recommendations include evaluating the facial bone and available anchorage, planning the restoration before extraction, and preparing an alternative provisional replacement. Intraoperative findings, including inadequate primary stability, may require a different placement or loading plan.

CBCT integration and digital workflow checks

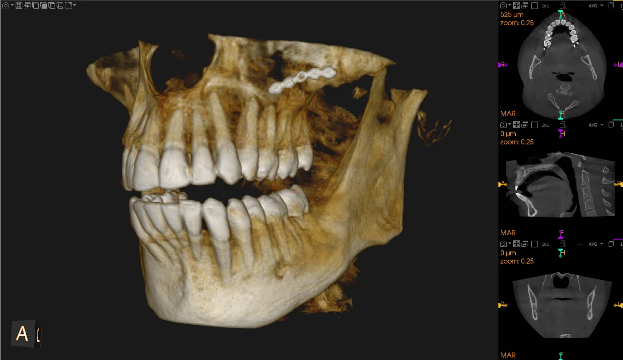

Combining CBCT anatomy with a surface scan and the proposed restoration can support prosthetically driven planning. The ITI’s 2018 static-guidance consensus recommends alignment of surface scans with volumetric imaging and a 2 mm safety margin from critical anatomical structures. That margin is a planning recommendation, not a guarantee that an individual implant will stay within a specified error. Appropriate clinical judgment remains necessary when imaging, anatomy or access is unfavorable.

Useful workflow checks include confirming dataset identity and registration, reviewing critical anatomy in the source images, checking guide support and seating, and following the manufacturer’s calibration and surgical-system instructions. Agreement between a digital plan and a printed guide is only one part of the process; reliable transfer to the patient must also be assessed.

Radiation dose optimization should be individualized for each justified dental CBCT examination. The FDA recommends choosing exposure factors according to the clinical indication, patient size and anatomical region, using the lowest radiation dose that still produces diagnostically adequate images. Equipment should also be maintained and tested appropriately.

Training and implementation should be competency based

The ITI recommends surgical experience and comprehensive training for static computer-assisted surgery. A small mean positioning error in a study does not demonstrate that an inexperienced operator is ready for independent practice. Training should address planning, hardware use, recognition of registration or guide-fit problems, and management when the planned approach cannot be completed.

For a practice introducing guided workflows, a useful implementation checklist is to assign responsibility for reviewing the plan, rehearse the selected system, establish laboratory communication and document a fallback approach. Audit actual preparation time, surgical time, remakes, complications and patient feedback. Assess equipment, software, training and laboratory costs against local case volume; the evidence cited here does not support a universal break-even timetable or guaranteed increase in case acceptance.

How to interpret emerging technology

AI and robotic assistance are promising tools, but product availability, technical accuracy and patient benefit should be evaluated separately. A planning feature or laboratory performance result is not sufficient evidence of autonomous clinical decision-making, durable implant survival or cost-effectiveness. When assessing new systems, look for clinical validation in a comparable patient population, transparent outcome definitions and follow-up appropriate to the claimed benefit.

Guided implant surgery is a valuable option for transferring a well-designed restorative plan. Its use should be matched to the patient, site, restoration and team’s skills, with verification at each stage. The cited evidence supports improvements in placement accuracy and favorable outcomes in selected settings; it does not make any guided technique a universal replacement for clinical judgment or establish a single protocol as appropriate for every patient.
