Dynamic Abutments & AI in Implantology

When a planned screw-access opening emerges in an unfavourable position, what can an angled screw-channel abutment solve, and where can AI actually help? These are separate decisions. Angled screw access can improve the restorative route to an implant; AI may assist a defined planning task. Neither feature, by itself, establishes better load distribution or longer implant survival.

What “dynamic” means in this restoration

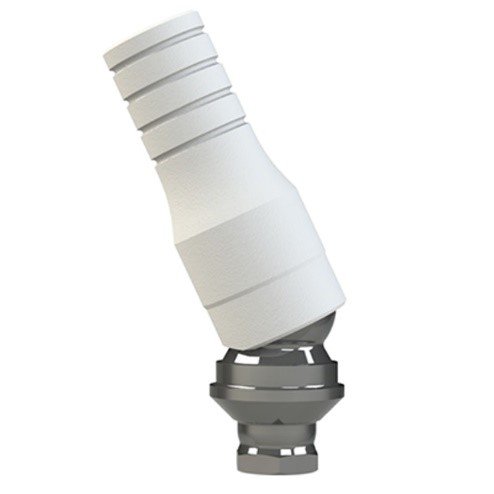

In this context, a dynamic abutment is an angled screw-access solution. Its purpose is to redirect the restoration’s screw-access channel relative to the implant axis, within the selected system’s limits. It does not reposition an implant already integrated in bone, and the component descriptions do not describe a restoration that follows natural tooth movement or changes its angle during chewing. Berroeta and colleagues’ technical report and the manufacturer’s screw and screwdriver description concern access geometry and compatible components.

The 2015 report described a Dynamic Abutment allowing screw-access deviation of up to 28° for the component reported. It was a technical description with a clinical report, not a trial of AI-controlled load correction. Its historical limit must not be transferred to every current TiBase, screw, implant connection or restoration.

Choose the exact component before choosing an angle

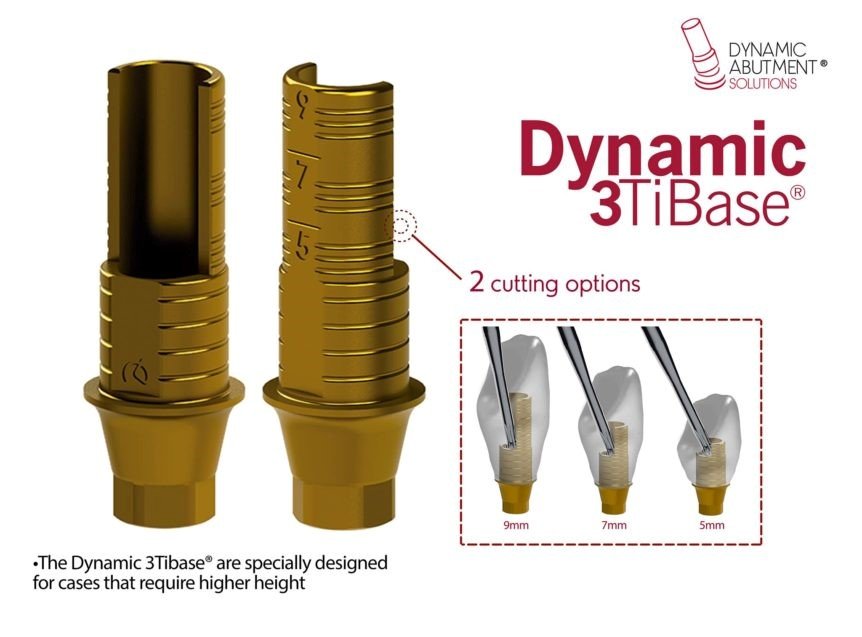

The relevant limit comes from the product reference, implant connection, restoration type and instructions applicable in the treatment country. The Dynamic Abutment Solutions eIFU portal separates product families and country-specific documents. Its general TiBase and Screws document, DTIBASE_2602_EN (reviewed 9 February 2026), distinguishes dynamic from straight screw-channel components and directs the professional to compatible products. It identifies maximum screw torque on the product label rather than giving one universal value.

An example shows why this matters. In the USA Dynamic TiBase IFU, FDADASTB1_2401_EN (reviewed 15 November 2024), page 2, the table for CAD-CAM zirconia superstructures in the Multi-Unit DAS System lists an Astra Tech OsseoSpeed TX compatibility with a 4.5/5.0 mm platform: maximum angulation is 30° with a 1 mm TiBase gingival height, but 15° with a 4 mm height. These are entries for that specified configuration, not a general angle prescription or permission to combine other parts. Consult the current matching IFU and catalogue for the actual reference; the portal’s USA and general documents are distinct.

That USA IFU also restricts ceramic-superstructure milling to the manufacturer’s validated milling centres. The general IFU warns against narrow-platform TiBases for posterior restorations. Such restrictions must be checked alongside geometry, not replaced with a marketing headline about maximum angulation.

Digital planning: preserve the distinction between implant and screw-channel axes

A useful digital plan relates the proposed restoration, available anatomy and component library. The restorative team should inspect where the screw opening exits, whether the driver can reach it and whether the selected components and material design remain within their instructions. If those requirements cannot be met, the prosthetic or surgical plan needs reassessment; increasing the channel angle is not a universal rescue for an unsuitable implant position. This is a planning principle derived from the component constraints, not an outcome proven for every clinical situation.

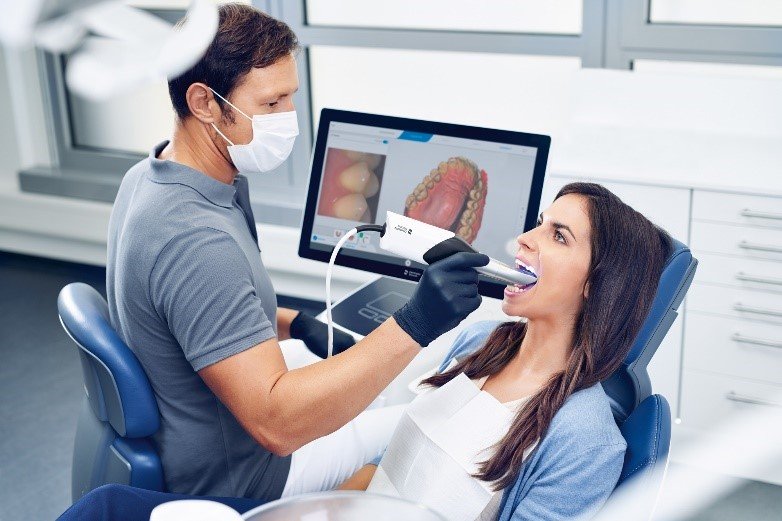

Intraoral scans and CBCT data can contribute different information to a planning workflow. Their registration, segmentation and proposed implant position still need professional review. A displayed virtual implant is a proposed position, not evidence that the same position was achieved surgically or that the restoration will remain stable.

What the AI evidence actually measured

In a 2024 primary study by Elgarba and colleagues, automated and expert virtual plans were compared using 10 matched CBCT/intraoral-scan datasets for single mandibular premolar or molar replacements. Twelve dentists assessed the plans. Of the visual-analogue assessments, 95% for AI and 96% for human planning required no major clinically relevant correction; these percentages describe assessments of virtual plans, not implant-survival rates. AI planning was faster in that study.

This supports a potential role in a specific presurgical planning task. It does not validate every commercial system, complex full-arch rehabilitation, automatic post-placement abutment adjustment, reduced bone loss or prevention of temporomandibular symptoms. Identify the software and version, intended task and validation population before applying a result to a new case. Similar-looking software outputs can answer very different questions.

Occlusion, mechanical testing and simulation are different kinds of evidence

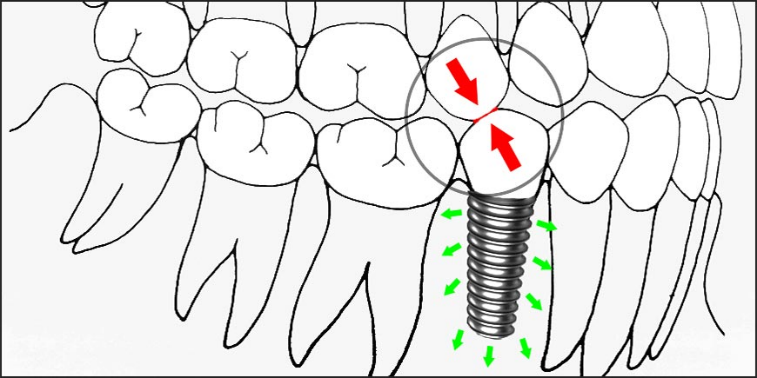

Screw-channel angulation and the direction of functional loading are different variables. Redirecting the driver’s access does not itself demonstrate that a patient’s occlusal contacts or implant loads have been corrected. The restoration still needs clinical assessment of fit, contacts, function and maintenance needs.

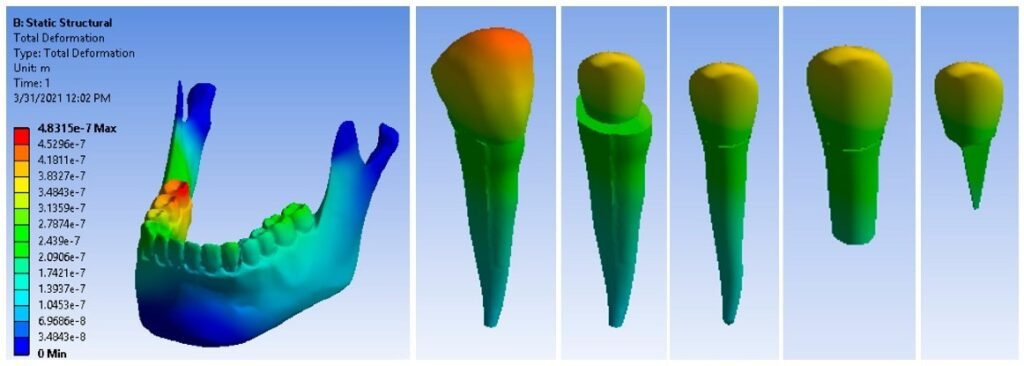

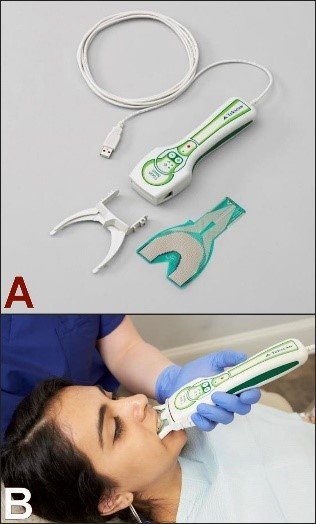

The same distinction applies to digital measurements and simulations. A bite-recording display, a colour map and an AI prediction should not be treated as interchangeable. Ask what the device measures and how the software was validated. For example, Farré-Berga and colleagues’ finite-element study evaluated a specified ball-head screw and screwdriver design under simulated mechanical conditions. That kind of model does not observe bone change or symptom resolution in a patient. No AI system in the sources cited here is shown to alter the delivered abutment automatically during chewing.

Mechanical testing also has a bounded meaning. Bhumpattarachai and colleagues (2023) tested 40 implant-crown assemblies in four laboratory groups, including a 20° Dynamic TiBase group on a specified narrow-diameter implant. The measured endpoint was screw reverse torque after thermal and cyclic loading, and the systems did not perform identically. These laboratory results are not patient follow-up, a universal component-selection rule, or evidence that AI prevents bone loss. A tested configuration must not override a current manufacturer restriction.

A practical review before fabrication and delivery

Use this planning checklist alongside the complete instructions for the selected product:

1. Define the problem. Is the concern the screw opening, implant position, prosthetic contour, access for maintenance, or a clinical symptom? Do not assume that one angular correction addresses all of them.
2. Verify the input records. Review the scan and image quality, registration and proposed restorative design. Recheck an implausible digital result before accepting a software suggestion.
3. Match the entire component chain. Record the implant connection and platform, TiBase reference and height, screw, driver, CAD library, restoration type and country-specific IFU. Check permitted angulation and material design for that combination.
4. Review the design with the laboratory. Confirm the screw-access opening, driver access, component seating and required fabrication pathway. If a component or indication is incompatible, revise the plan before fabrication.
5. Verify clinically and document follow-up. Follow the complete applicable instructions for processing, assembly and tightening. Assess the delivered restoration and investigate symptoms or technical problems; do not infer a successful outcome from a planning screen.

The component checks above draw on the manufacturer’s IFUs; the need to distinguish a plan from an outcome follows from the virtual-planning study design. The checklist does not specify a universal torque, loading regimen or recall interval.

Clinical takeaway

Use angled screw access to address a defined restorative-access problem within the exact component’s instructions. Use AI for tasks that have relevant validation and retain professional review of its output. A feasible design, a favourable simulation and a good clinical outcome are separate findings; implant longevity cannot be guaranteed by combining these technologies.
